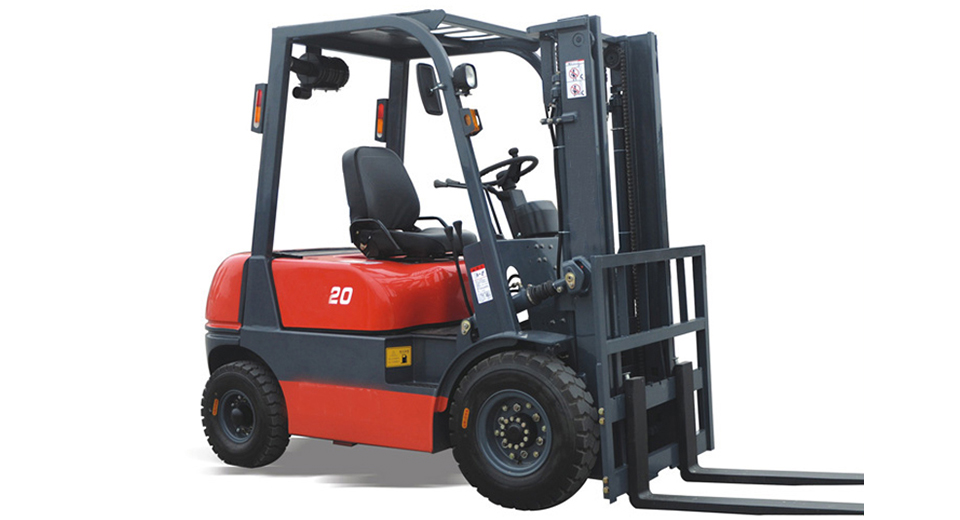

Forklift
20
- ModeJDY20
- Power formdiesel oil
20
20
Products
parameter
turn on
shut down
| Mode | JDY20 |
| Power form | diesel oil |
| Rated load kg | 2000 |
| Load center mm | 500 |
| Lifting height mm | 3000 |
| Free lifting height mm | 0 |
| Fork size mm | 1070×122×40 |
| Portal tilt angle F/R | 6\12 |
| Minimum turning radius mm | 2220 |
| Minimum right angle stacking channel width mm | 4110 |
| Minimum right angle channel width mm | 2010 |
| Minimum ground clearance mm | 120 |
| Height of roof support mm | 2150 |
| Front overhang mm | 450 |
| Maximum travel speed full load kn/h | 19 |
| Maximum lifting speed full load mm/m | 500 |
| Maximum traction full load kn | 17 |
| Max Climb Capability % | 20 |
| Full length with fork mm | 3680 |
| Full length without fork mm | 2510 |
| Full width mm | 1160 |
| Height of fork when it is lifted up at the maximum (with shelf) mm | 4220 |
| Landing height of gantry mm | 2060 |
| Front wheel | 7-12-12PR |
| Back wheel | 6.00-9-10PR |
| Wheelbase mm | 1600 |
| Distance front / rear wheel mm | 970/970 |
| Weight no load kg | 3530 |
| Battery voltage / capacity V/Ah | 12/80 |
| Engine | xinchai 490 |
| Rated power Kw/r.p.m | 37/2500 |
| Rated torque Nm/r.p.m | 156/1700-1900 |
| Bore ✕ stroke mm | 90×105 |
| Cylinder number | 4 |
| Displacement L | 2.54 |
| Fuel tank capacity L | 60 |
| Working pressure Mpa | 17.5 |
