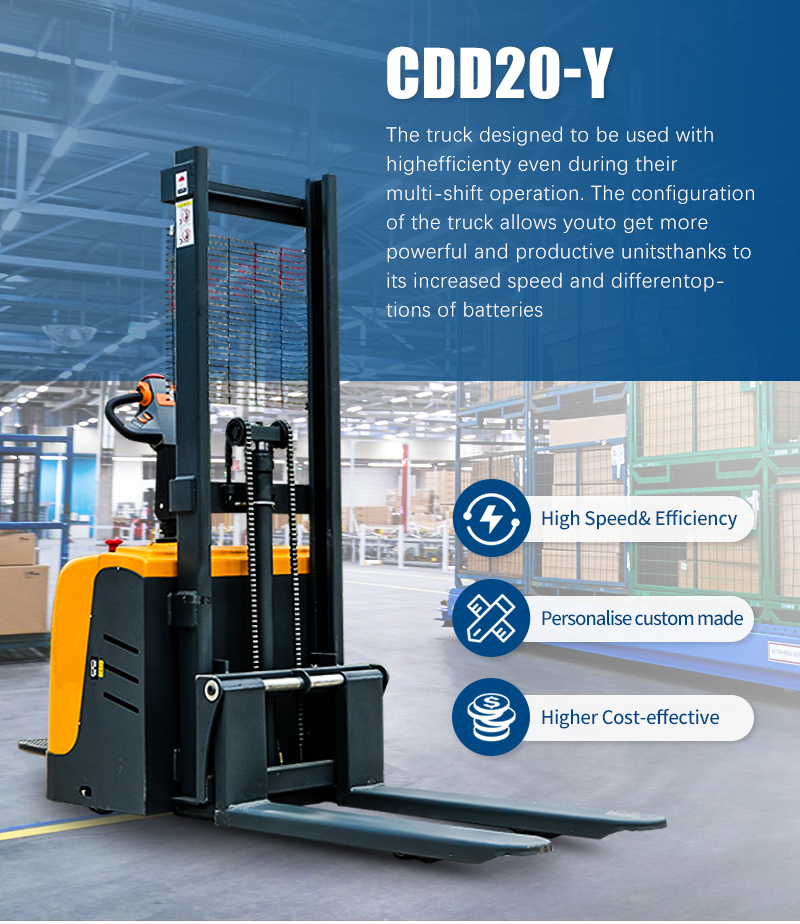

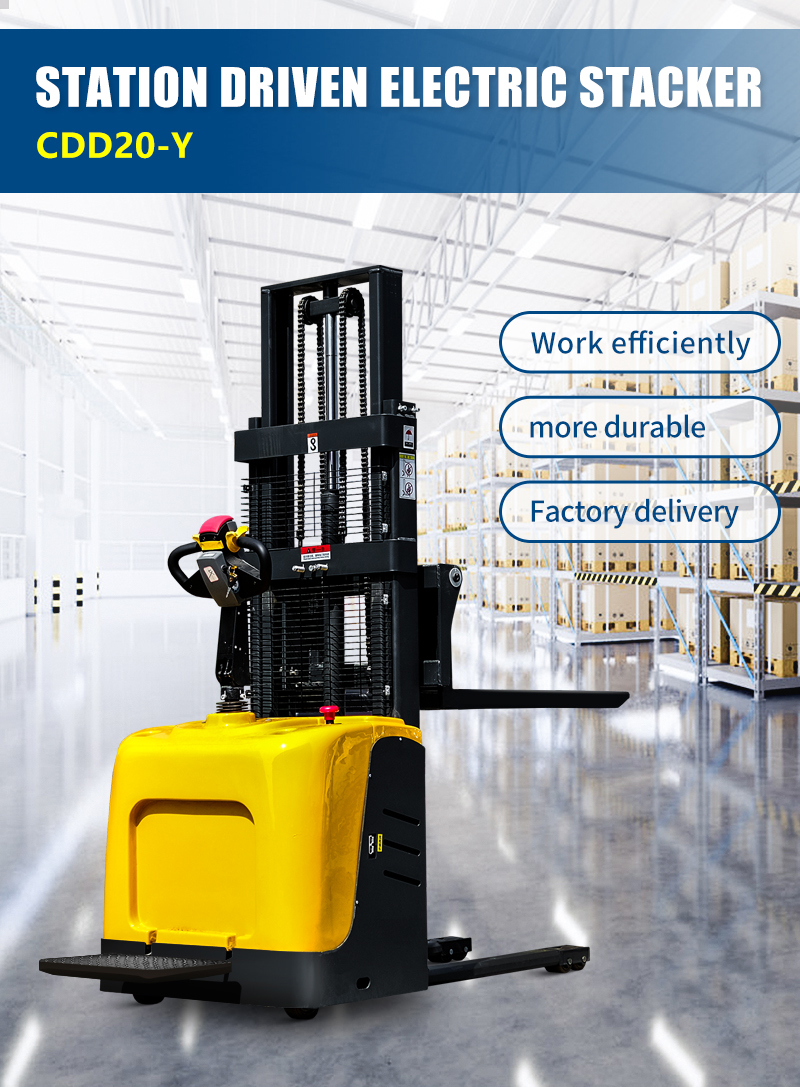

Electric Stacker
CDD20Y
- Product numberCDD20-Y
- drive formelectric
CDD20Y

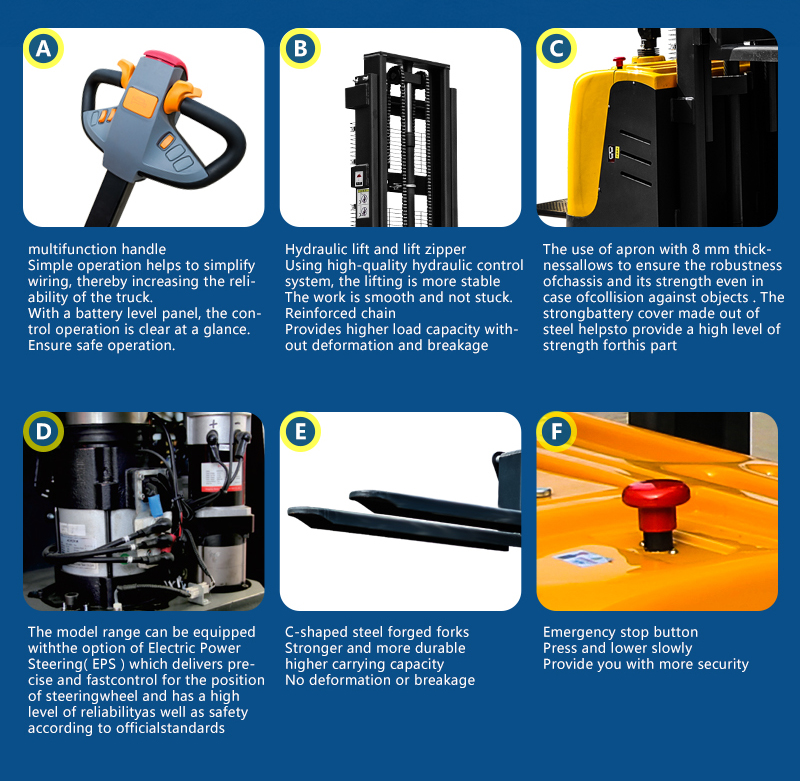

Emergency stop button
Press emergency conditions to protect personnel safety
Products

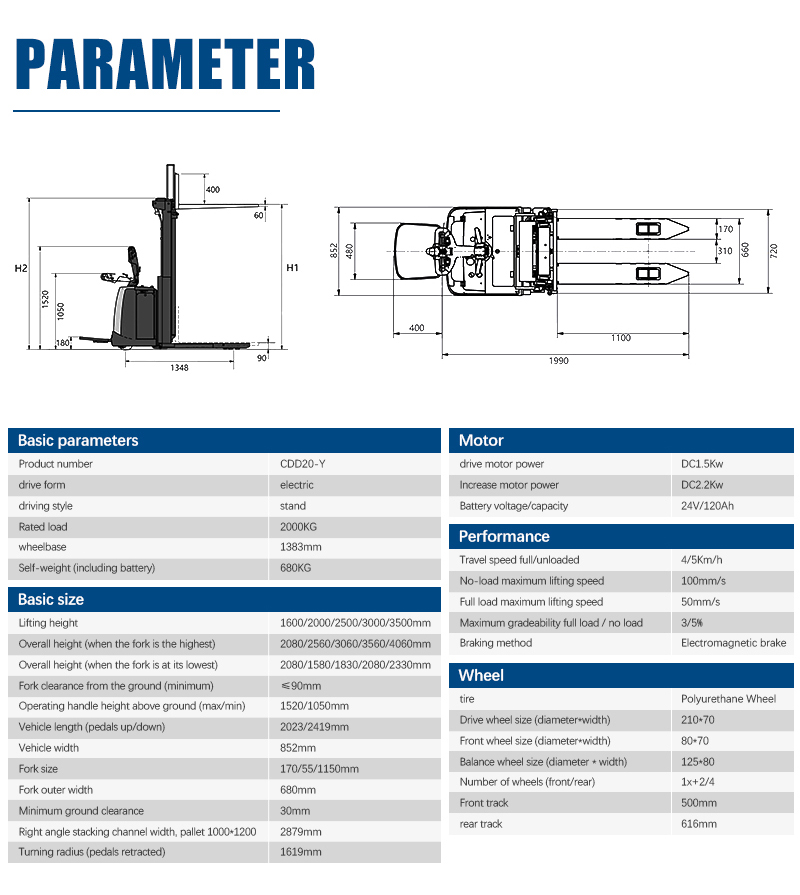

parameter
turn on
shut down
| Product number | CDD20-Y |
| drive form | electric |
| driving style | stand |
| Rated load | 2000KG |
| wheelbase | 1383mm |
| Self-weight (including battery) | 680KG |
| Lifting height | 1600/2000/2500/3000/3500mm |
| Overall height (when the fork is the highest) | 2080/2560/3060/3560/4060mm |
| Overall height (when the fork is at its lowest) | 2080/1580/1830/2080/2330mm |
| Fork dearance from the ground (minimum) | E90mm |
| Ooerating handle height above ground (max/min) | 1520/1050mm |
| Vehicle length (pedals up/down) | 2023/2419mm |
| Vehicle width | 852mm |
| Fork size | 170/55/1150mm |
| Fork outer width | 680mm |
| Minimum ground clearance | 30mm |
| Right angle stacking channel width, pallet 1000*1200 | 2879mm |
| Turning radius (pedals retracted) | 1619mm |
