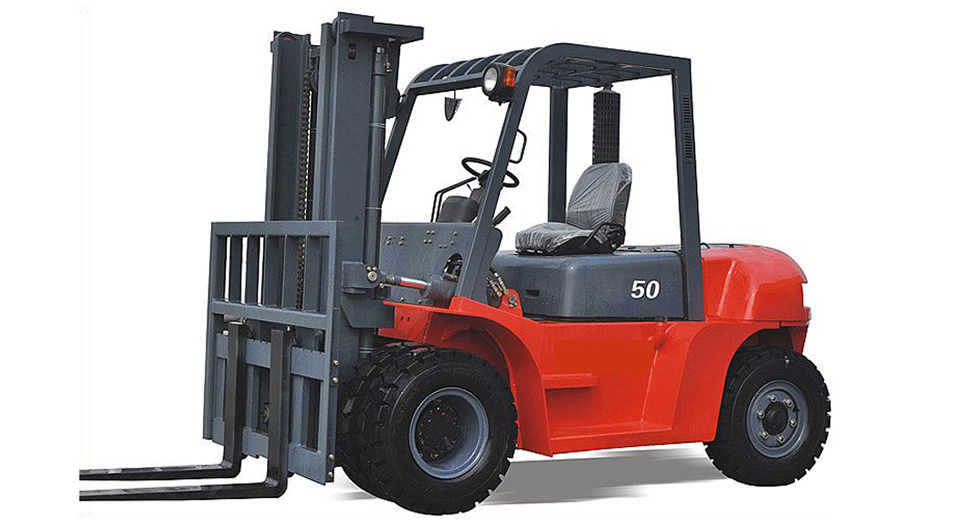

Forklift
50
- ModelJDY50
- PowerDiesel oil
50
50
Products
parameter
turn on
shut down
| Model | JDY50 |
| Power | Diesel oil |
| Rated load kg | 5000 |
| Load center mm | 600 |
| Lifting height mm | 3000 |
| Free lifting height mm | 205 |
| Fork size mm | 1220*150*60 |
| Portal tilt angle Deg | 6//12 |
| Minimum turning radius mm | 3250 |
| Minimum right angle stacking channel width mm | 5500 |
| Minimum right angle channel width mm | 2960 |
| Minimum ground clearance mm | 200 |
| Height of roof support mm | 2469 |
| Front suspension distance mm | 610 |
| Maximum travel speed km/h | 26 |
| Maximum lifting speed mm/s | 400 |
| Maximum traction Kn | 51.4 |
| Maximum gradient % | 20 |
| Overall length（with cargo fork) mm | 4650 |
| Overall length(without cargo fork) mm | 3430 |
| Full width mm | 2235 |
| Height of fork when it is lifted up at the maximum (with shelf) mm | 4380 |
| Landing height of gantry mm | 2500 |
| Tire (front wheel) | 8.25-15-14PR |
| Tire (rear wheel) | 8.25-15-14PR |
| Wheelbase mm | 2250 |
| Tread mm | 1470/1700 |
| Dead weight Kg | 7980 |
| Battery V/Ah | (12/80)*2 |
| Engine | CY6102BG6 |
| Fuel tank capacity L | 120 |
| Working pressure Mpa | 20.. |
